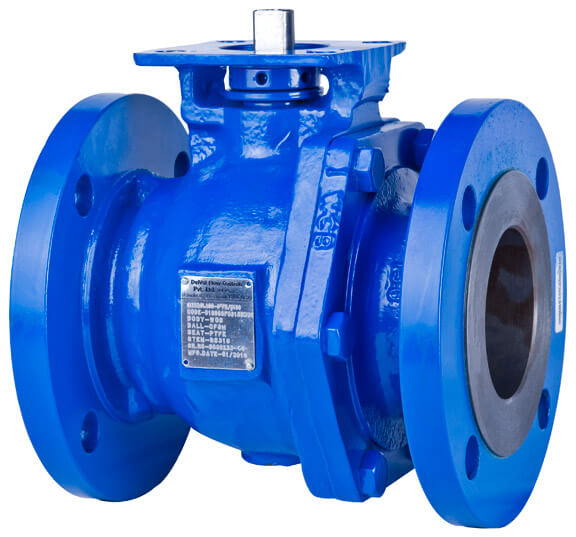

Series 65-72 Floating Ball
- API 6D for Ball Valves
- ATEX 2014-34-EU for Valves and Actuators
- CRN Series 65-72 Floating Ball Valves
- NSF-61 & 372 Series 64, 65/66, 69/70, 73/74, 75/76 & 78 Ball Valves
- PED Module H for Ball Valves and Butterfly Valves
- SIL3 FBV Series 65-72 & Series F
- TR-CU-032-Certificate for Ball Valves and Butterfly Valves
- TR-CU-Declaration
Description:
Firesafe design and NACE versions available.
| Body Type | Flanged RF |
| Body | CS, SS |
| Ball | CF8M, CF8, CF3M, CF3 |
| Stem | 316 SS, Duplex S31803, 17-4 PH |
| Seat | PTFE, RTFE, PEEK, Delrin, Devlon, Nylon, Ultra |
| Size Range | 1/2" to 12“ (DN 15 to 300) varies by series |
| Pressure Rating | Series 65/69 – Class 150 Series 66/70 – Class 300 Series 67/71 – Class 600 Series 68/72 – Class 900 |
| Design Standard | BS EN 17292, ASME B16.34 |
| Testing Standard | ISO 5208 |
Features
- ISO 5211 top plate for direct mounting
- Contoured seat design with no seat extrusion
- Fully adjustable packing gland with actuator mounted
- Live loaded graphite stem packing
- Robust stem provides real blowout proof design
- Anti-static device between ball-to-stem and stem-to-body connection
- Self relieving seats as standard
